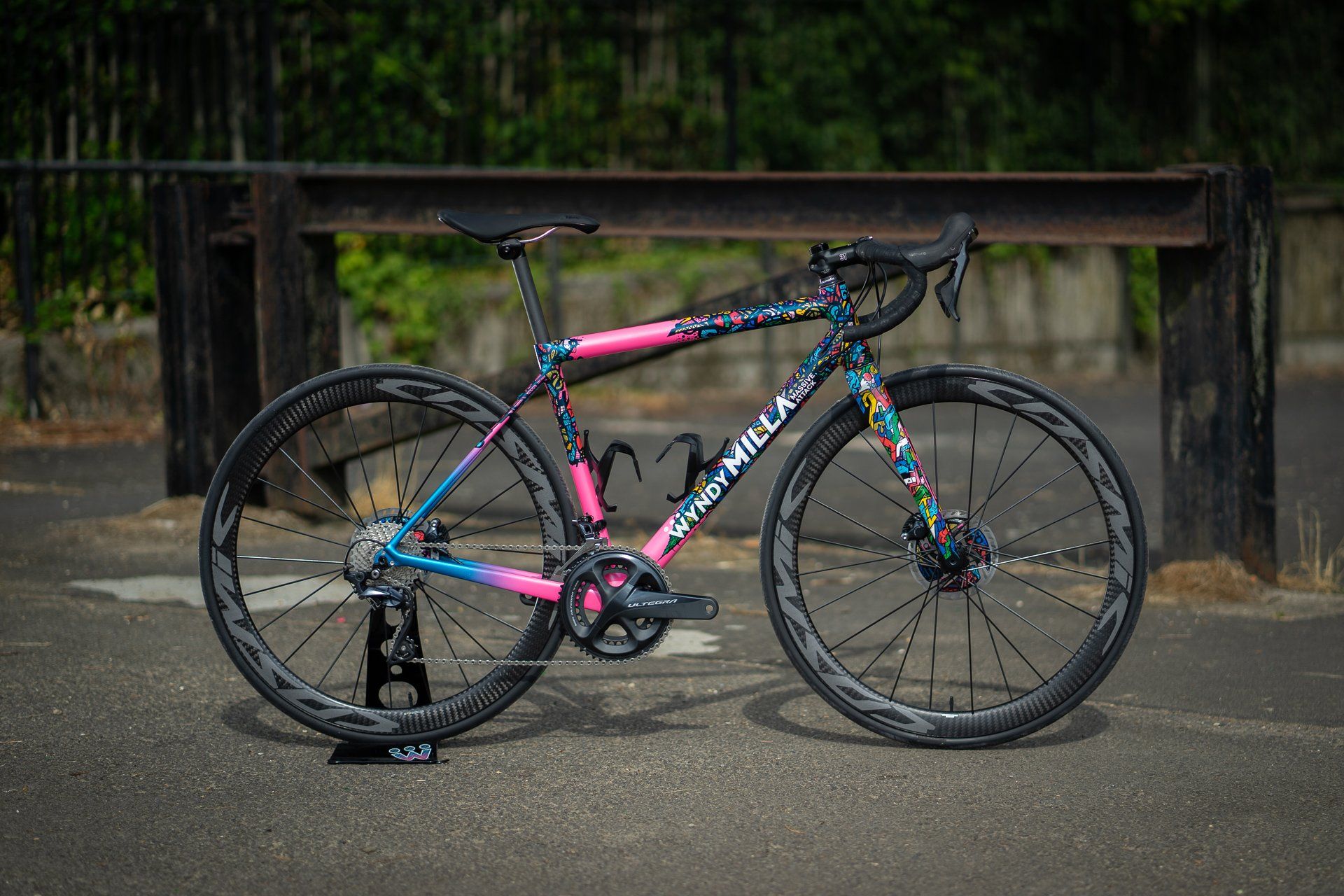

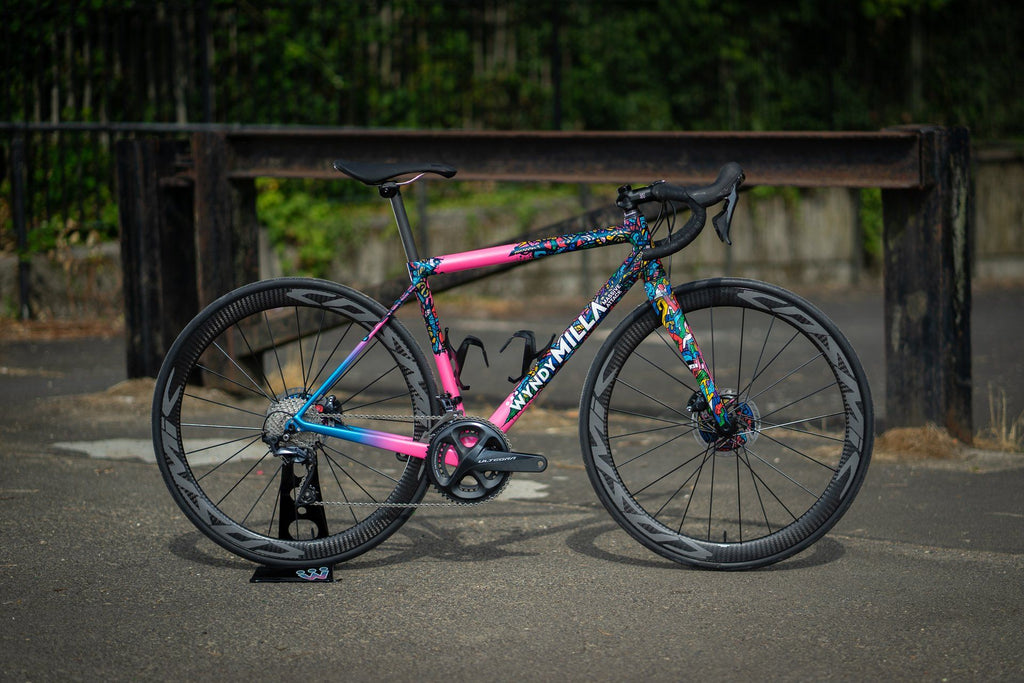

The Massive Attack Disc is a traditional carbon fibre road frame with contemporary disc brakes. It is designed for all round performance with exceptional stiffness-to-weight and ride feel enhanced by the control and confidence of disc brakes. Hand built tube to tube construction guarantees quality and lifetime durability with infinite scope for customisation.
The headset, seatpost clamping mechanism and cable routing options are all neatly hidden and internal for a clean, modern aesthetic. 12mm Axles and Flat Mount brakes ensure compatibility with the most cutting edge groupset options on the market.
Each frame is built from scratch with bespoke custom geometry and extensive tubing options allowing the frames handling and stiffness to be tailored to each riders individual requirements.
Massive Attack Disc Specification:
Each WyndyMilla frame comes with a full bike fit and a simple but fully custom paint design included in the price. If you want to go further though, the sky really is the limit. Either way, work with our designers to describe your dream combination of colours and finishes then add your own personal touches like names, motifs, slogans etc. Once you agree the final digital artwork, WM Paintworks will work their magic and bring your frame to life.
For more information or to purchase please call us on +44 (0)1252 782960, email [email protected] and we'll get right back to you, or come and see us here.
Massive Attack Disc Specification:
|
Material |
Carbon Fibre Mitred tube to tube construction manufactured in Italy Toray High Modulus M55J Fibres |
|
Custom Geometry and Stiffness |
Full bike fit included Geometry design and fibre layup is tailored to suit each rider's individual requirements |
|
Brake Mount Type
|
Flat Mount Disc |
|
Seat Clamp
|
Integrated Seatpost Clamping Mechanism |
|
Integrated Cable Routing Options
|
Internal Cables for Mechanical Groupsets Internal Wiring for Electronic Groupsets Clean Finish for Wireless Groupsets Universal Interchangeable System for future compatibility |
|
Steerer Diameter
|
1 1/8” to 1 1/2” default 1 1/8” to 1 1/4” 1 1/8” to 1 1/8” |
|
Headset
|
Integrated headset cups with full metal inserts for durability Columbus 45 degree Taper Bearings WyndyMilla Signature Top Cap |
|
Front Mech
|
Band on 31.6mm / 34.9mm |
|
Bottom Bracket
|
Threaded BSA bottom bracket Push Fit Options available on request |
|
Seatpost
|
27.2mm / 31.6mm |
| Axle Type |
Front - 12mm Thru Axle Rear - 142 x 12mm |
|
Real Measured Tyre Clearance |
30mm - subject to wheel choice and tyre manufacturer discrepancies
|
|
Build Options |
Available as a frameset, or complete build to your spec - subject to quote From price includes Shimano 105 R7020 disc groupset, Mavic Aksium Elite Wheelset with tyres, Fabric saddle and Deda bars, stem, seatpost and bar tape. |
